Continuous thermoforming machine

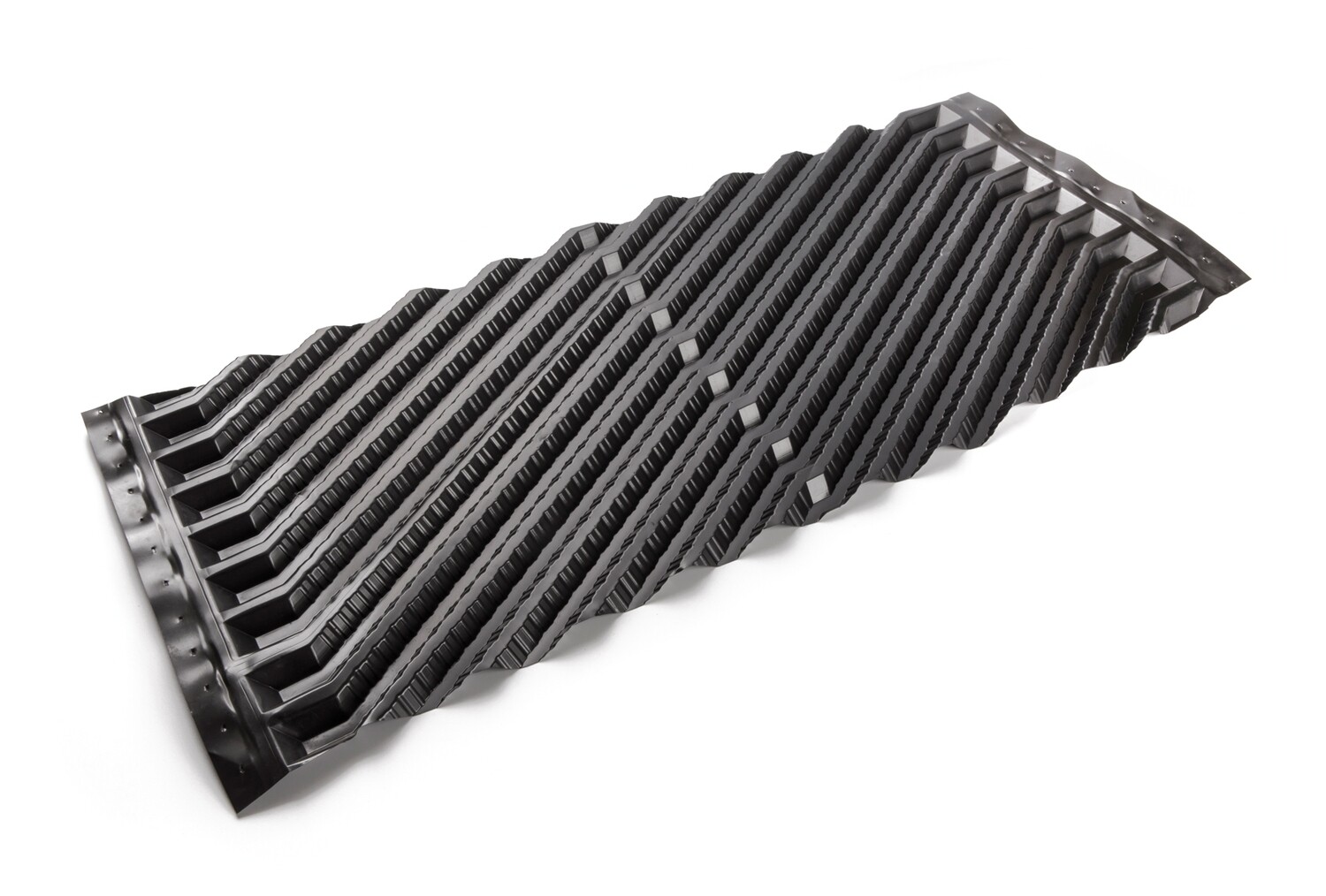

This model of thermoforming machine is ideal for obtaining parts for Cooling Towers.

The advantages

• Electric system with servomotors: greater reliability, high productivity, constant speed, superior quality of the thermoformed, height of the molds adjustable at will.
• Energy saving (-60%).

• 180° rotatable forming press for quick mold change.
• Toggles movimentation systems .

• Cutting station perpendicular to the forward direction of the printout with adjustable positions for cutting the layer to the desired final length.
• Longitudinal cut by cutter or disc blades.
• Mold quick lock.

The peculiarities

• Self-loading reel holder for quick and easy loading even with large double reels.
• Film index by hook chains moved by servomotor.
• Preheating gripper system (optional) which ensures the transfer of even the hardest and/or thickest materials.
• Single resistance heating optimizing heat distribution with integrated diagnostics.
• Forming press with two independent mobile planes, moved by servomotors. The press can rotate 180° for quick mold replacement and simple maintenance.
• Transverse cut available in two configurations: fixed or mobile guillotine with flying cut for a length of the final piece that can be selected as desired.
• Longitudinal cut of the molded parts by cutter or discs.
• Presses positions using motorized actuators (for index coordination).
• Grinder can be supplied in line with the machine.
• Rolls preheating recommended for materials such as polypropylene.
• In-line extruder available for introducing the foil directly into the thermoforming machine.
• Cycle management through an industrial interactive screen which facilitates the operator to adjust and memorize the working parameters.
• Telediagnostics via Internet: thanks to the possibility of directly communicating with the system at a distance, O.M.G. I am always at the customer's side in managing the system.

*Others working area and drawing heights upon request.
